More than a century of experience.


To operate any process efficiently, it is essential to measure, actuate, record and control. In selecting ABB you are choosing a partner who is offering the best measurement and analytical solution for your needs, enabling maximum return on your investment. When investing in ABB’s measurement and analytical solutions you are receiving the best technology, reliability and service in the business. Research and development is a vital source of ABB’s technology leadership. ABB constantly builds on the foundation of existing technologies for new applications, and continues to develop the breakthrough technologies needed to meet the challenges of the future. ABB and its heritage companies have been leaders in innovation and technology for more than 100 years.



Measurement made easy In space, on the ocean floor and everywhere in between

ABB’s flowmeter portfolio contains breakthrough product innovations designed to solve problems, increase profits and save costs. Contact ABB for all your flow measurement, distribution and control needs. Flow measurement solutions for tough applications

https://library.e.abb.com/public/8a01236d91fd4239b4b6032d5c005b13/PB_MeasurementProductsOverview-EN_C_A4.pdf

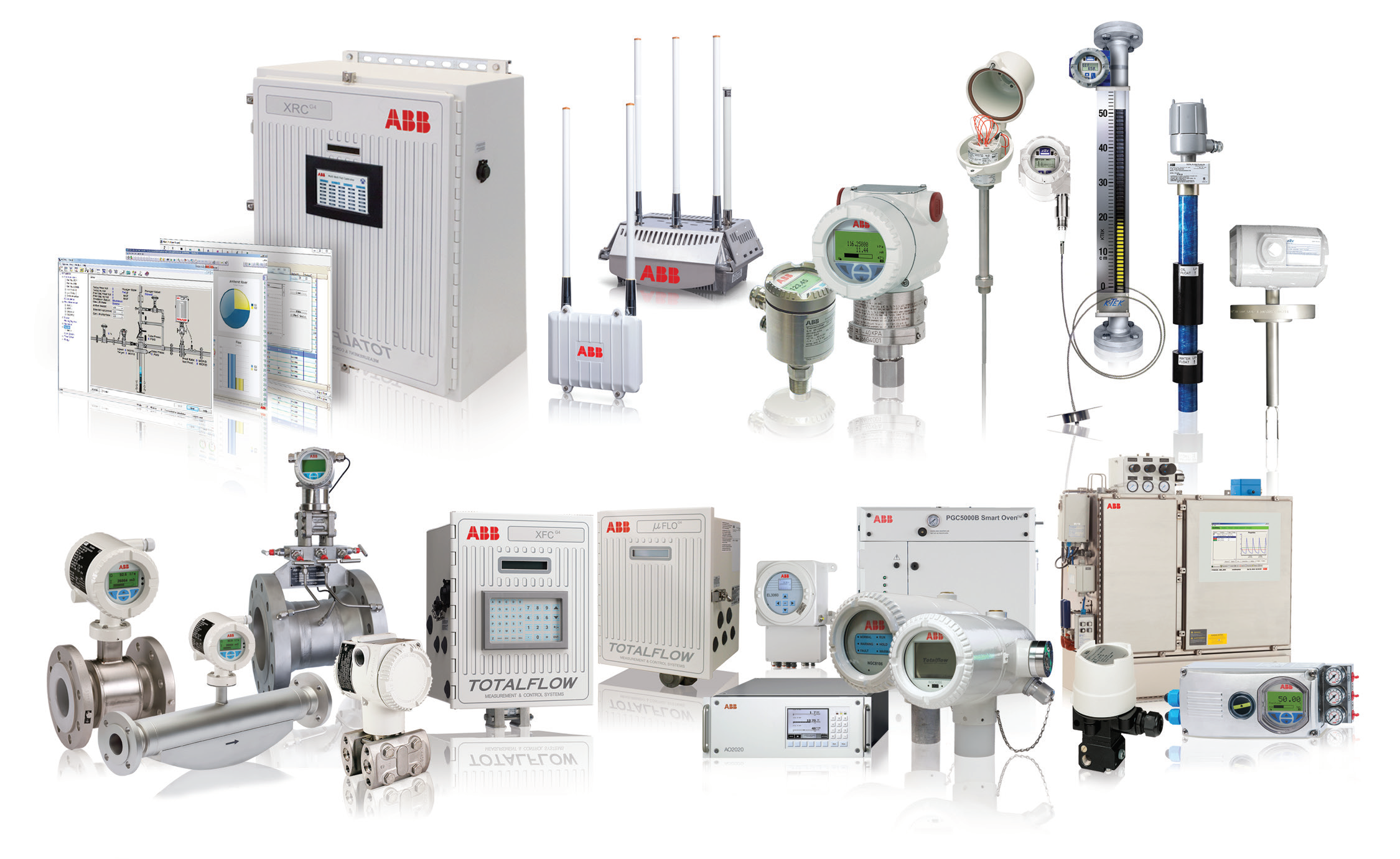

ABB‘s measurement and analytical products provide world-class measurement solutions for any industry, utility or municipality. Latest innovations deliver technological solutions to make it easier for you to run your plant. ABB’s measurement and analytical products are based on common technology, providing a common look and feel and method of operation. This results in products that are easy to configure, easy to integrate, and easy to maintain.





















ABB’s leading position in instrumentation, control, and electrification (ICE) enables you to benefit by integrating the plant’s automation and electrification systems into a common platform for large multiscope projects. ABB minimizes your risk by providing integrated products and solutions as the Main Automation Contractor (MAC) and the Main Electrical Contractor (MEC). This reduces the cost and complexity of projects and results in a system that is easy to maintain and provides opportunities for optimizing energy at the plant. As one of the world’s leading suppliers of measurement products, ABB uses its extensive systems engineering capabilities to develop specific solutions to meet the demands of any customer.


Flow Measurment

ABB’s flowmeter portfolio contains breakthrough product innovations designed to solve problems, increase profits and save costs. Contact ABB for all your flow measurement, distribution and control needs. Flow measurement solutions for tough applications


ABB offers flow solutions for many tough applications, such as abrasive fluids, high pressure or temperature, noisy environments and remote locations. Let ABB help you solve your difficult flow measurement challenges. Flow measurement solutions for increasing profit From custody transfer applications where higher accuracy maximizes revenue to new applications for smart flow measurement that impact your bottom line, ABB has the right technology to maximize your profits. Ask the flow experts to help you make more money from your plant.

Flow measurement solutions for saving cost ABB’s flow technology includes systems that help detect leaks in drinking water infrastructure, to remote flow computers that feature self diagnostics and health status. ABB’s flow technology is designed to minimize operating costs and save you money through smart engineering and application expertise.

ABB’s knowledge about flow measurement and management is unmatched. Over the decades, ABB has developed an unrivalled understanding of customers’ challenges and developed innovative solutions to meet them.
You have access to over 100 years of flow measurement and control experience to help you save cost and increase profits.

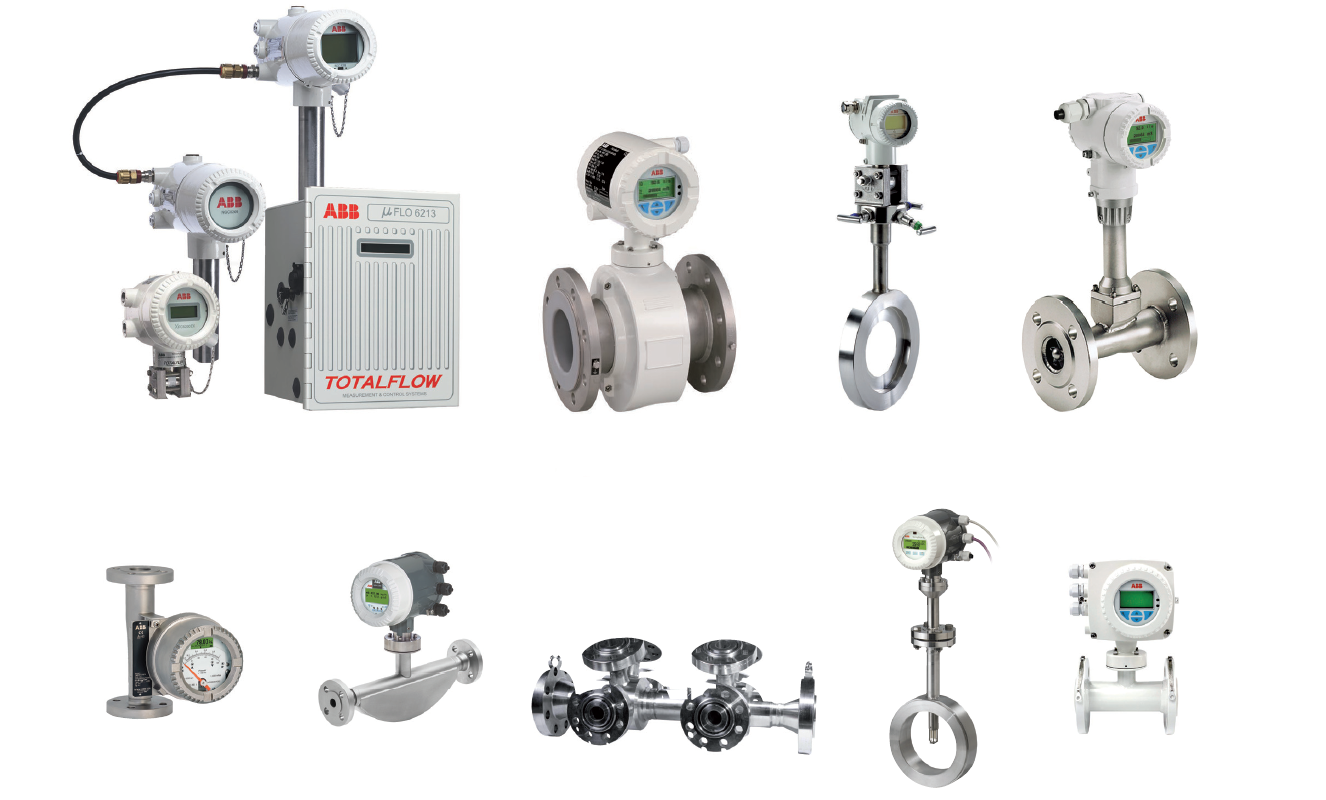

ABB’s flow measurement portfolio:
Electromagnetic flowmeters
Vortex and swirl flowmeters
Differential pressure flowmeters
Variable area flowmeters
Coriolis mass flowmeters
Thermal mass flowmeters
Liquid & Gas Flow computers
Natural gas chromatographs

Flow Computing

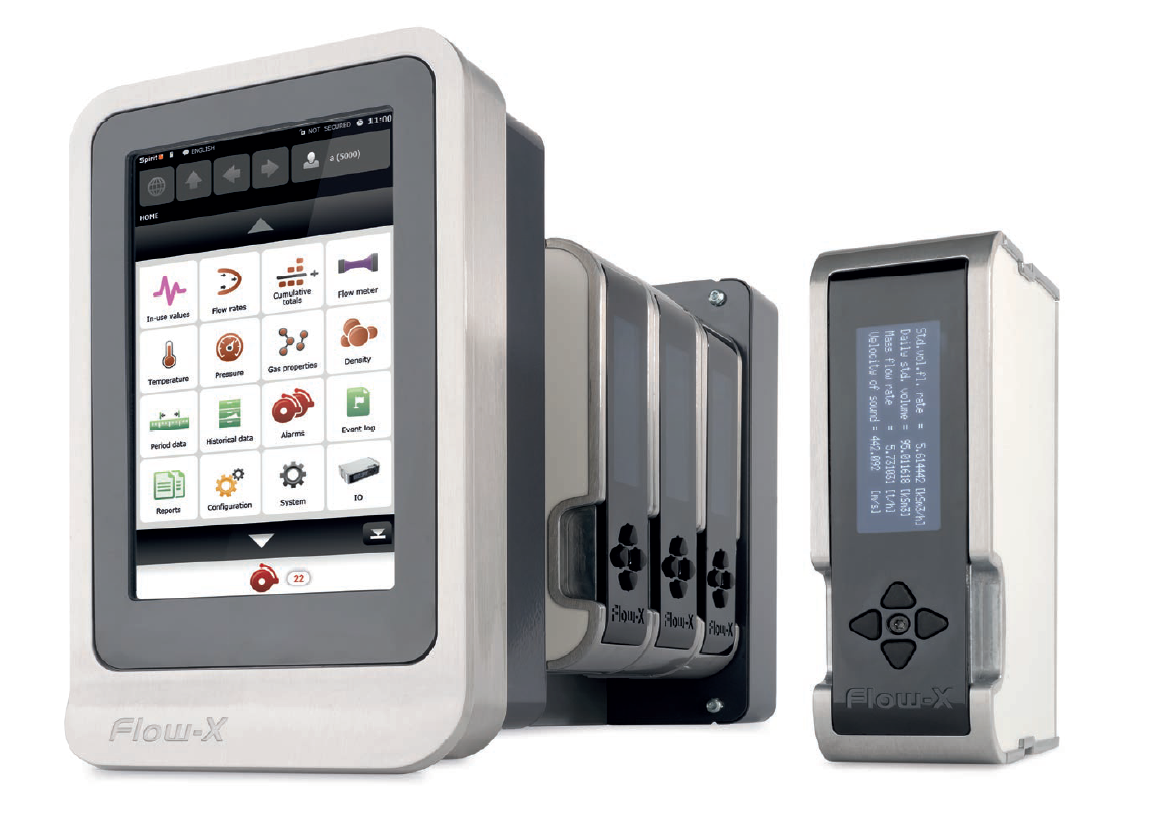

Flow X Series: ONE MODULE, DIFFERENT ENCLOSURES


Many devices claim to be a flow computer or to have flow computing capabilities. However, the Flow-X flow computers are true flow computers that are not a general purpose control device like an RTU, a PLC or a DCS. Instead it is especially designed for custody transfer and allocation metering. The Flow-X series complies with the most stringent requirements for security, traceability and auditability. A true flow computer like the Flow-X provides accurate and indisputable input data for invoicing. Accuracy is key when every drop counts. The Flow-X sets the highest accuracy standard in flow computing. The accuracy of the analog inputs is better than 0.002 % at room temperature and 0.008% over the full ambient temperature range.


The Flow-X has a powerful CPU to support even the most demanding gas and oil calculations, such as GERG-2008, which is currently the most accurate standard for natural gas. All data processing and storage including Modbus communication is based on 64-bit resolution to avoid any loss of accuracy.

The Flow-X/M flow module is a complete flow computer with all the IO needed for any gas or liquid flow meter installation. It can be used in both single stream and multi-stream configurations. Because of its modular concept it is ideal for single stream installations and also for meter stations with a multiple parallel flow meters it provides cost-effective redundancy without sacrificing accuracy and security.

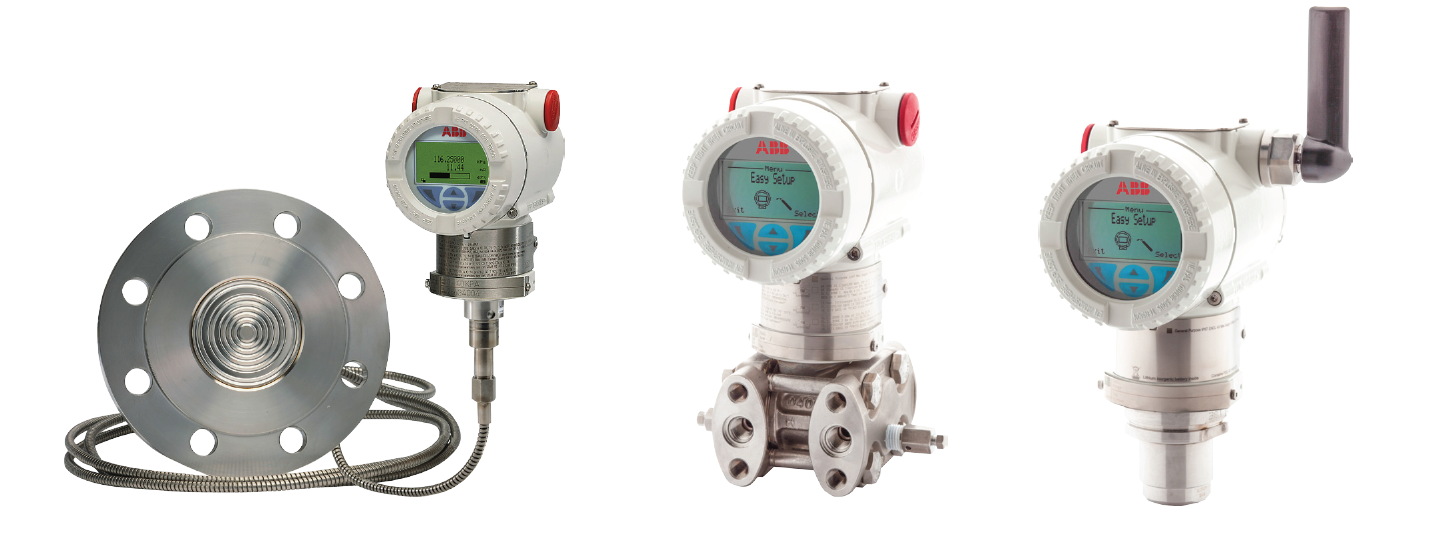

Pressure Measurment

Comprehensive measurement solutions Serving your industry


ABB‘s measurement and analytical products provide world-class measurement solutions for any industry, utility or municipality. Latest innovations deliver technological solutions to make it easier for you to run your plant. ABB’s measurement and analytical products are based on common technology, providing a common look and feel and method of operation. This results in products that are easy to configure, easy to operate and easy to maintain.


For more than 80 years, ABB’s pressure measurement products deliver reliability, accuracy, repeatability and easy maintenance to customers worldwide.
ABB’s pressure measurement:
Absolute, gauge and differential pressure
Transmitters − IEC 61508 SIL2/3 certified
pressure transmitters and switches
Multivariable transmitters
Interface level/density transmitters
Pressure measurement remote seals
Pressure measurement accessories
Pneumatic pressure transmitters

Level Measurment

Proven level technologies providing reliable measurement solutions for process and utility applications


Level measurement is a critical process parameter used in a variety of commercial and industrial applications around the world. ABB has the proven technology to provide solutions for the most difficult level applications for both liquids and solids. From tall grain silos to high pressure boilers and process vessels, ABB offers a wide breadth of level technologies, certifications and approvals to meet the needs of the most demanding applications. With the recent acquisition of K-TEK, a market leader in level detection, and ABB’s existing hydrostatic level product lines, ABB now offers the most complete level measurement product line in the world. Whether an application requires a cutting-edge solution, such as the non-contact laser or ultrasonic level transmitter, or ultra high pressure magnetic level gauges, transmitters and switches, ABB has the right technology for liquid or solids level detection needs.

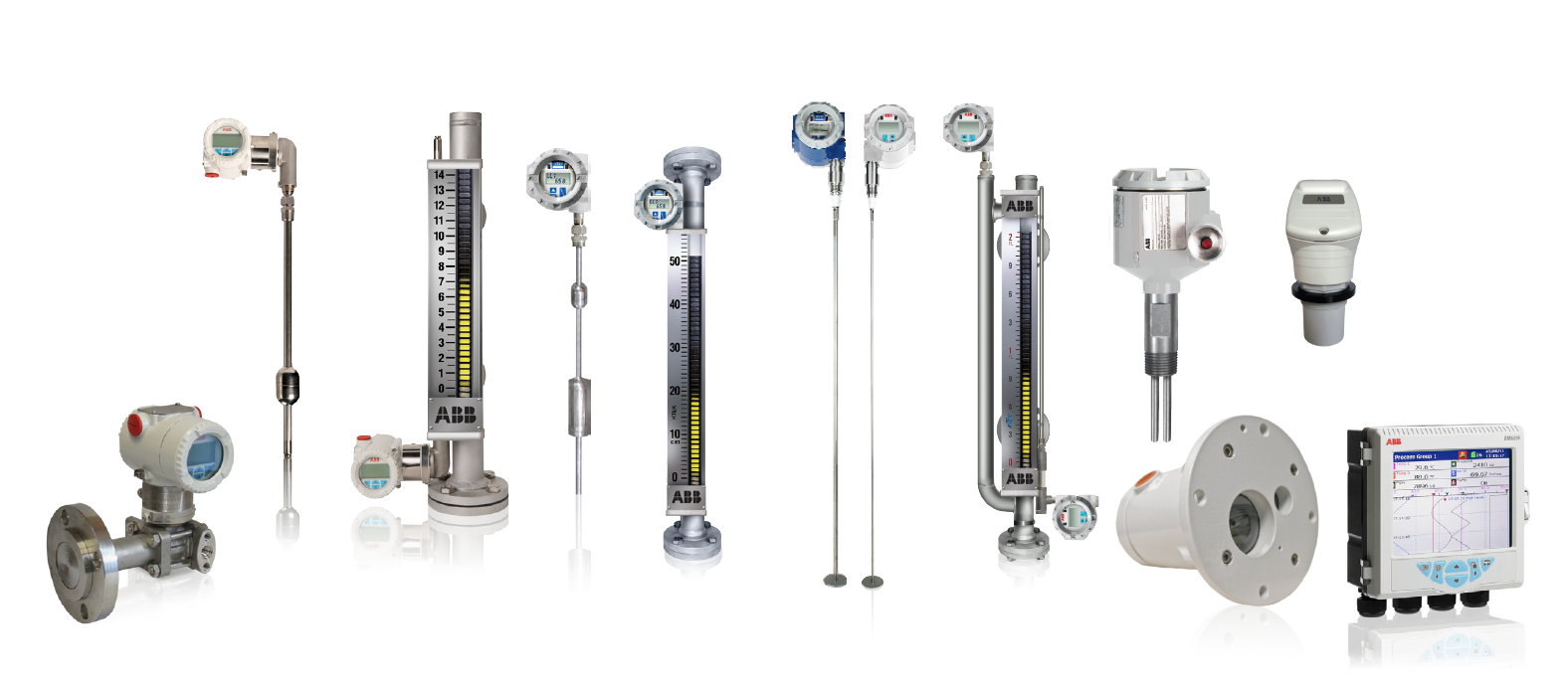

ABB’s level measurement:
Magnetic Level Gauges
Magnetostrictive Level Transmitters
Guided Wave Radar Transmitters
Ultrasonic Level Gauges & Switches
Buoyancy Level Switches
Thermal Dispersion Level Switches
Vibrating Fork Level Switches
Specialty Level Switches
Field Indicators & Controllers
RF Level Controls
Gauge and Differential Pressure Level Transmitters
Liquid Level Sensors

Process Gas Chromatographs

ABB process gas chromatograph portfolio includes a new specialty gas chromatograph - PGC5009 for simulated distillation using fast temperature programmed analyzer.


ABB offers a proven analytical solution to completely meet your Refinery Flare Monitoring requirements based on our large breadth of application and product expertise within the hydrocarbon processing industry. – Careful attention to design for operational safety – Measurement accuracy and reliability to avoid regulatory fines – Low total cost of ownership Set it and forget it!

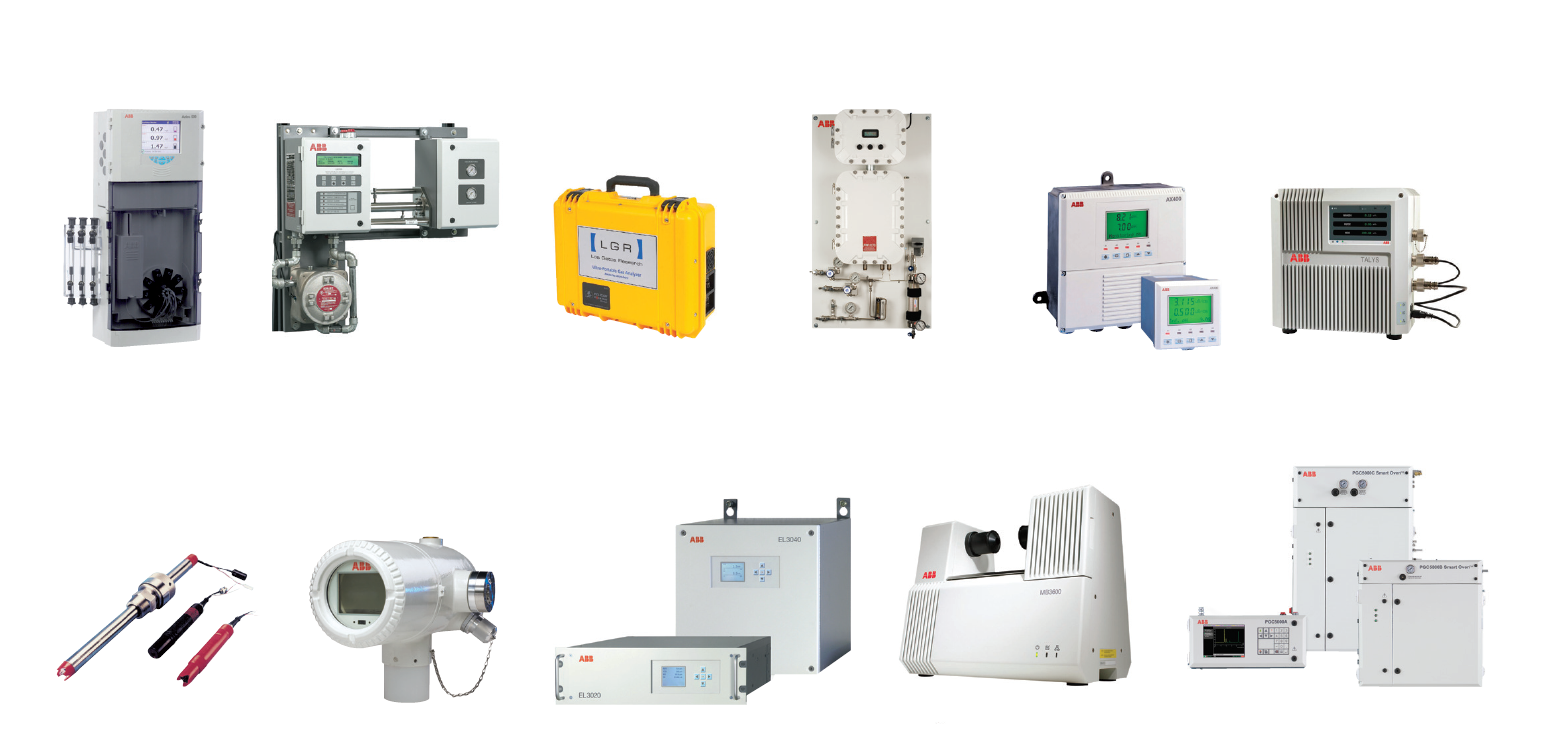

ABB’s analytical solutions provide real-time analysis in a variety of industries and applications. These liquid and gas analytical products enable cost-effective measurements in order to monitor product quality, meet process requirements, control chemical usage and conform to local and global environmental regulations. Maximize your product quality Whether you are producing ethylene or drinking water, ABB has the right analyzer technology to help you maximize your product quality. High product quality impacts your ability to set price, satisfy your customers and reduce the costs associated with poor quality. Contact ABB for help in maximizing your product quality using analyzers.

Meet process requirements Enable the efficient operation of your process by analyzing key areas and ensuring they are operating in the optimum way. Chemical imbalances, pH issues and incorrect dosages can lead to degraded or even dangerous process conditions. ABB has the expertise to ensure your process is operating at optimal efficiency.

Control chemical usage Incorrect chemical dosage costs you money, could be dangerous and can negatively impact the environment. ABB offers a full line of analyzers to monitor applications and help optimize chemical usage. Contact ABB for solutions to help conserve natural and financial resources.

Regulatory compliance ABB is your partner in meeting the everincreasing regulatory requirements for your industry. We offer a full line of analyzers to help monitor emissions, optimize combustion and analyze discharges into the environment. Avoid regulatory fines and penalties with ABB’s analyzer solutions.

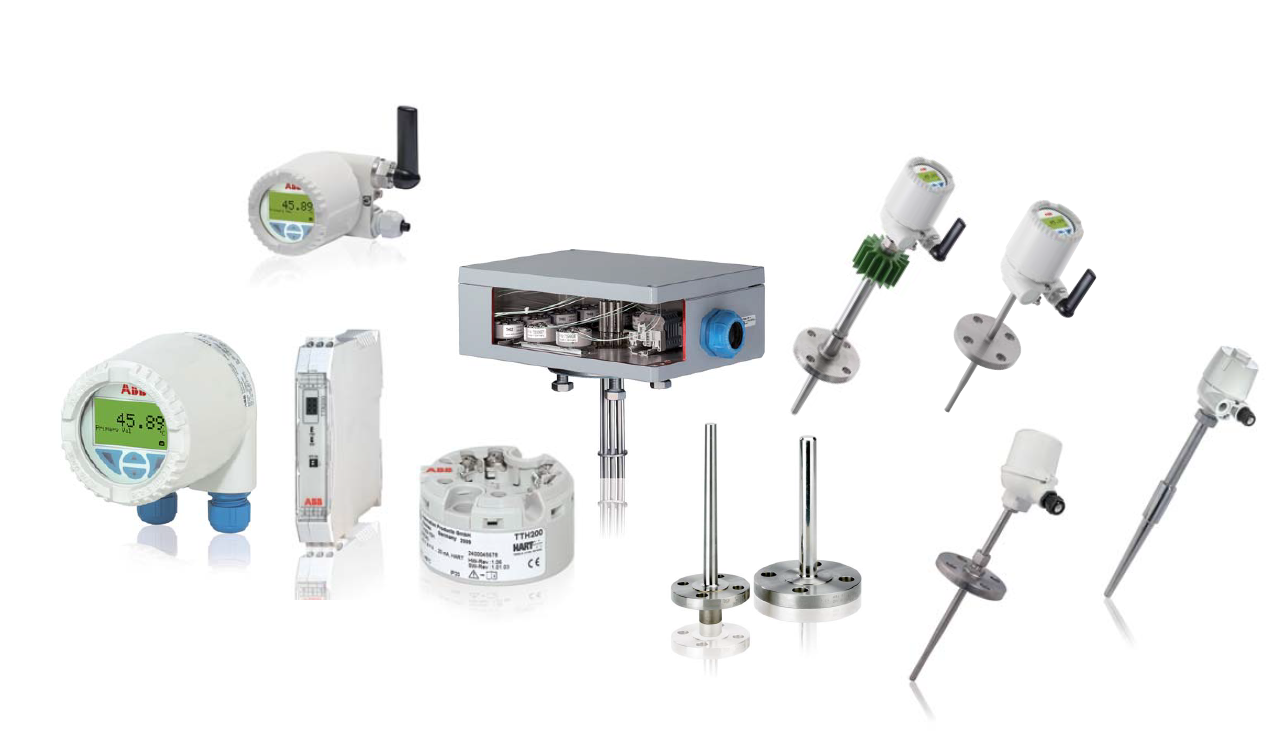

Temperature Measurment

Precision and fl exibility in temperature measurement for process effi ciency


Precise temperature measurement is fundamental for successful process operations in a variety of industries. Customers benefit from ABB’s extensive experience in the field of temperature measurement, yielding one of the most comprehensive product portfolios on the market. ABB provides the support needed to choose the device or system that perfectly suits your process requirements. A full range of reliable temperature measurement products tailored to serve special industry applications is available from ABB.






With innovative temperature sensors and transmitters from ABB, you benefit from low investment costs and standardized modules with impressive long-term stability.

The versatile family of temperature measurement products is based on a modular design principle allowing for the utmost flexibility. ABB offers extremely short delivery times for its standard versions and a simple ordering process due to the clear portfolio structure.

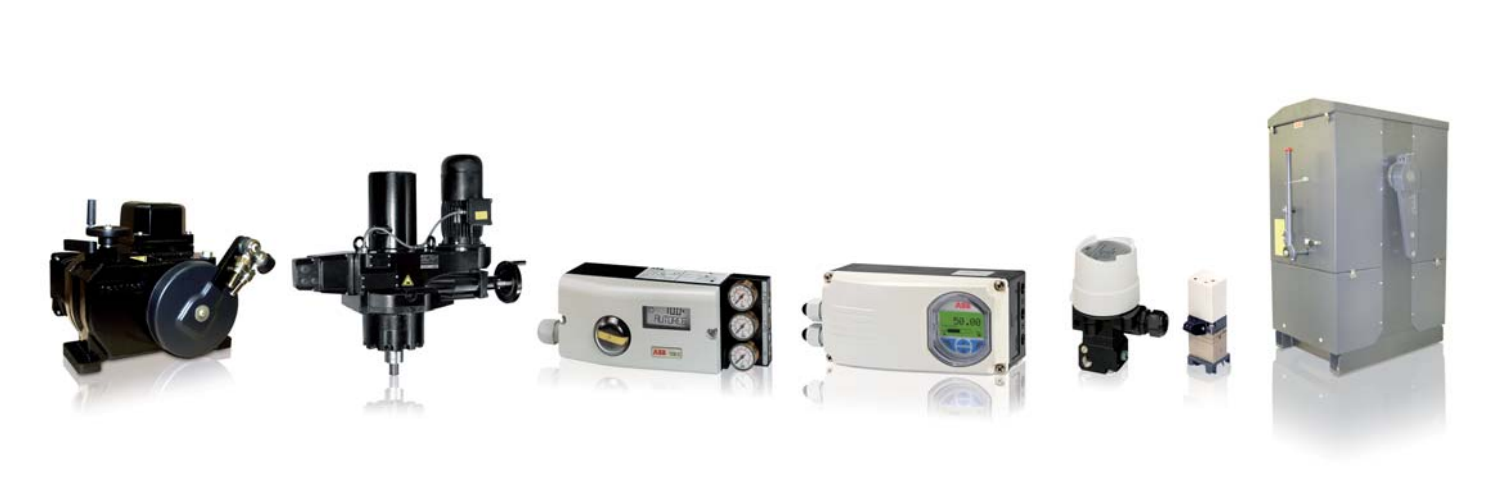

Actuators & Positioners

Meeting your valve control needs


Valves, dampers and butterfl ies are essential components in the process industry. With expertise and experience built up over 100 years and countless applications worldwide, ABB provides a wide range of products to position and actuate any final control element, delivering best in class performance for every industrial process.

From electrical and pneumatic actuators and state-of-the-art digital and conventional positioners to I/P Converters, ABB provides a comprehensive range of products, designed, engineered and manufactured to deliver fi rst class performance in your process. ABB’s extensive portfolio of actuators and positioners provides highly accurate and stable positioning of your control valves, crucial to achieve your operational targets:
− Energy efficiency processes
− High production quality
− Reliable performance
− Maximized output at lowest expense






Today, a wider range of materials must be processed at higher operating speeds – without sacrificing product quality or ris-king downtime.

ABB’s web tension measuring systems deliver greater control and reliability than ever before.

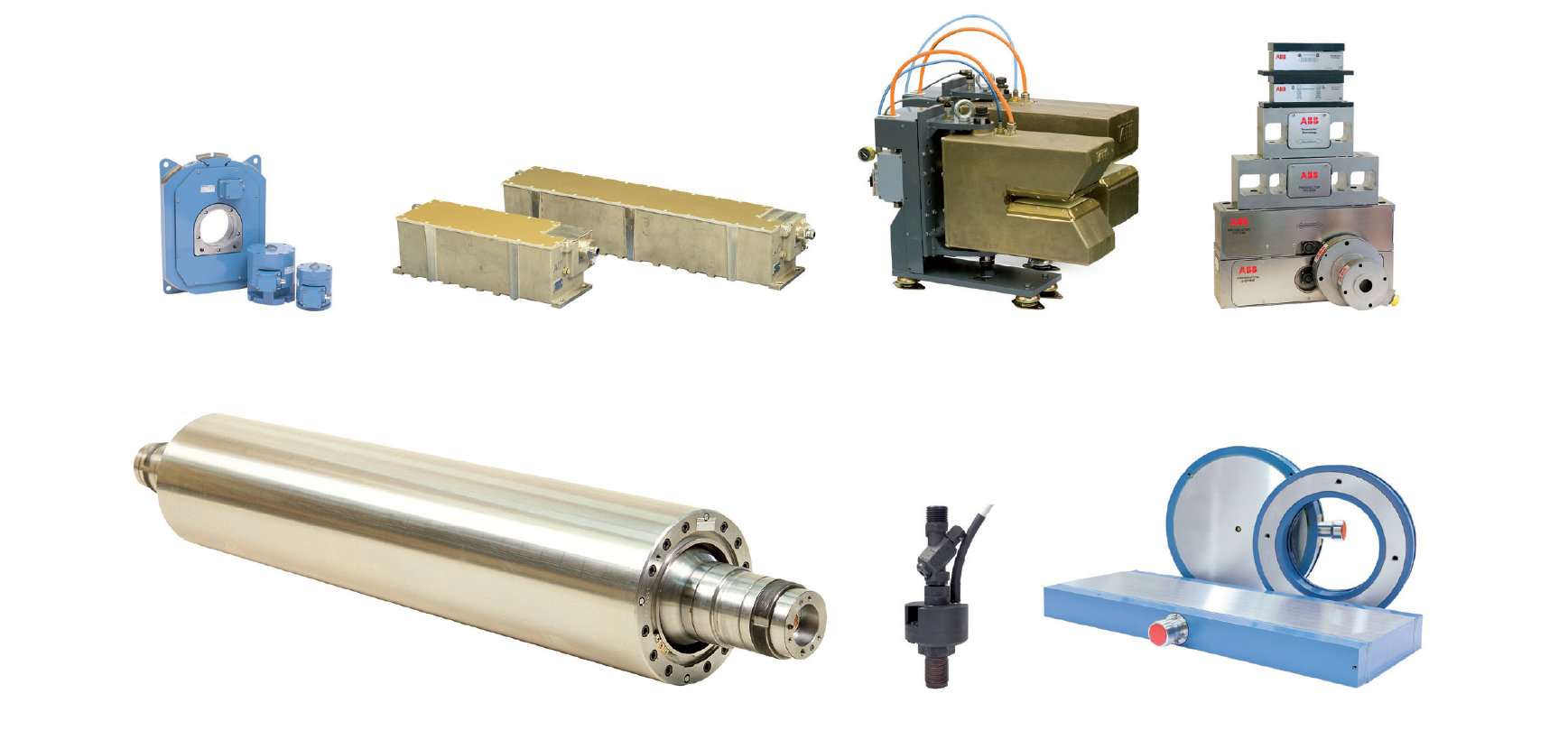

Force Measurment

Durable Pressductor technology


ABB’s Stressometer flatness measurement and control systems have been trusted for 40 years to help mills deliver superior quality products. Advanced features like Automatic Flatness Control (AFC) ensure that you maximize efficiency and minimize cost. Force, tension, position and dimension are critical for you to produce high quality products reliably and repeatedly. That is why ABB markets a series of sensors and controls designed to deliver optimum rolling mill performance.






Today, a wider range of materials must be processed at higher operating speeds – without sacrificing product quality or ris-king downtime.

ABB’s web tension measuring systems deliver greater control and reliability than ever before.




Oil & Gas Application
